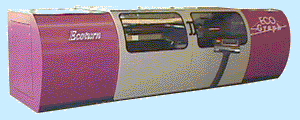

HIGH PRECISION MEASURING AND TURNING LATHE FOR THE MACHINING OF ROTOGRAVURE CYLINDERS
-
-Automatic processing of cylinder circumference, sides and radius
-
-High speed production
-
-Precise and reproducible cylinder geometry
-
-Compact and user friendly design
-
-Can be integrated into automatic production line
-
-Simple data input via touch panel
Reproducibily of diameter:
Cylinder parallelism:
Surface roughness Rz:
Process time for 1 m2 cylinder surface
± 0.01 mm
± 0.01 mm
max. 1.5 μm
10 minutes
- Self-explanatory ECOGRAPH interface based on
Windows CE
-
-Selection of process
automatic / semi-automatic / manual
-
-Quick change of diamond tools for circumference cutting
-
-Standard tungsten tools for side and radius cutting
-
-Integrated 3-D measuring probe for automatic measuring of cylinders and calibration of diamond tools
-
-Antivibration steel-polymer machine bed
-
-Symmetrical spindle sleeves for automatic clamping
-
-High precision cylinder bearings
-
-NV-controlled process
- Directed chip flow
ECOTURN - This innovative machine for the processing of rotogravure cylinders is the basis for top quality gravure and perfect printing.
