1. -Compact design, low overall height


2. -Simple operationby NC control


3. -Can be integrated into automatic production line

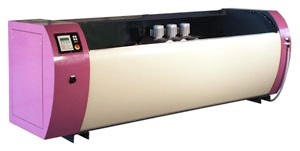

ECOPOLISHER COPPER / CHROME

HIGH SPEED GRINDING AND POLISHING MACHINE FOR ROTOGRAVURE CYLINDERS

TWO OR MORE INDEPENDENT TOLL STATIONS

1. -Reproducible surface roughness


2. -Programmable operating parameters for each tool


3. -All stations available with a choice of polishing stones or oscillating lapping film


4. -Steel and polymer concrete machine bed


5. -Precise linear guideways

THE IDEAL MICROPEOFILE FOR ANY SUBSTRATE

ECOPOLISHER was designed to bring to the industry a high speed, economical machine. This state-of-the-art machinery is able to achieve the highest quality micro polishing on any surface substrate. The symmetrical cylinder bearings are made of stainless steel. Contact pressure of the tools is individually adjustable from 1 to 50 kg. The wear of the stones is compensated automatically. The speed selection of the grinding stone, cylinder and carriage is all determined by the automatic process control.

TWIN INDEPENDENT HEADS WITH 2 STONES

1. -Grinding and polishing with different grits to achieve the proper surface finish


2. -Economical machining with stones

TWIN HEADS AND LAPPING FILM

1. -Lapping film can produce grain micro-polishing on copper or chrome


2. -Twin heads with two stones able to grind and polish

NC CONTROL

1. -PLC electronics with interface to remote control


2. -Fully automated process or manual operation


3. -Adjustable production parameters

OPTIONAL EXTRAS

1. -Water recycling unit with fine filter cartridge and pump


2. -Automatic cylinder dryer


3. -Automatic motor driven cover

Cylinder Holder

Hollow cylinders:

Shaft cylinders:

Technical Data

Process time:

Electrical consumption:

Water consumtion:

with cones

with hollow cones or tangential rollers

10 - 12 minutes per m2 for 0.35 Rz

(Initial surface roughness 1.5 Rz)

4 kW

Closed System with recycling unit, fine filter cartridge and pump.
