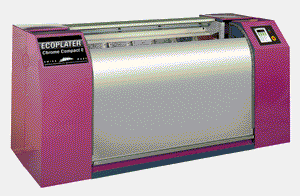

Ecoplater Chrome Compact

... the other way.

-Compact design, low overall height
-Simple operation by GALVACONTROL
-Flexible cylinder holding device with ECOCLAMP or modular adapter system
-Can be integrated into automatic production line

ECOPLATER CHROME COMPACT E, EC

CHROME PLATING TANK FOR ROTOGRAVURE CYLINDERS

ADVANTAGES

-Removal of vapour on both sides of working tank
-Optimal anode geometry
-Precise electrolyte flow
-Economical production / cost efficient / low maintenance

ECOPLATER produces wear resistant bright hard chromium layer, excellent conditions for high speed printing presses. This state-of-the-art machinery is based on the latest innovations in gravure cylinder chrome plating, requiring less energy consumption.

TECHNOLOGY ADVANCEMENTS

-Long-lasting platinium plated titanium anode
-Titanium and / or PVDF working trough construction
-Symmetrical flow of electrolyte
-360° electrolyte overflow return

CHROME LAYER

Precise temperature control combined with optimal anode geometry enhance formation of micro-cracks in chromium layer

ANODE GEOMETRY

-Concentric anode shape and automatic adjustment result in a uniform chrome layer
-Precise electrolyte flow towards cylinder decreases energy consumption

GALVACONTROL
