... the other way.
-
-Compact design, low overall height
-
-Simple operation by NC control
-
-Can be integrated into automatic production line

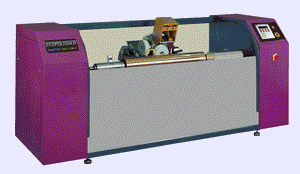

ECOPOLISHER QUATTRO
GRINDING AND POLISHING MACHINE FOR ROTOGRAVURE CYLINDERS
ROTARY HEAD WITH 4 TOOL STATIONS
-
-Reproducible surface roughness
-
-Programmable operating parameters for all 4 tools
-
-Stations provided with polishing stones or oscillation polishing paper
THE IDEAL MICROPROFILE FOR ANY SUBSTRATE
ECOPOLISHER was designed to bring to the industry a high speed, economical machine. This state-of-the-art machinery is able to achieve the highest quality micro polishing on any surface substrate. The symmetrical cylinder bearings are made of stainless steel. Contact pressure of the tools is individually adjustable from 1 to 50 kg. The wear of the stones is compensated automatically. The speed selection of the grinding stone, cylinder and carriage is all determined by the automatic process control.
ROTARY HEAD WITH 4 STONES
-
-Grinding and polishing with different grits to achieve the proper surface finish
-
-Economical machining with stones
ROTARY HEAD AND COPPER POLISHING PAPER
-
-Polish paper can produce cross grain micro-polishing
-
-Rotary head with 4 stones able to grind and polish
NC CONTROL
-
-PLC electronics with interface to remote control
-
-Fully automated process or manual operation
-
-Adjustable production parameters
STONE DRESSING
-
-Integrated diamond tool for easy stone dressing
Cylinder Holder
Hollow cylinders:
Shaft cylinders:
Technical Data
Electrical consumption:
Water consumtion:
with cones
with hollow cones or tangential rolls
4 kW
Recycling with 500 litre tank and fine filter cell
