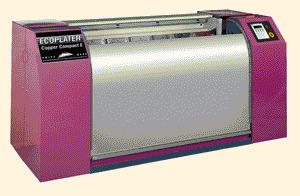

ECOPLATER COPPER COMPACT E, EC
COPPER PLATING TANK FOR ROTOGRAVURE CYLINDERS
-
-Compact design, low overall height
-
-Simple operation by GALVACONTROL
-
-Flexible cylinder holding device with ECOCLAMP or modular adapter system
-
-Can be integrated into automatic production line

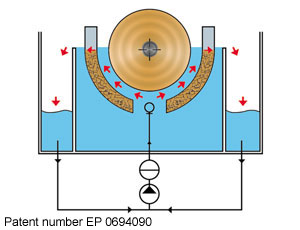

PATENTED ELECTROLYTE FLOW
-
-Symmetrical flow of electrolyte
-
-Controlled transport of anode sludge away from cylinder
-
-Optimal anode geometry
ECOPLATER produces fine crystalline hard copper layers, which are ideal conditions for the electronic engraver. This state-of-the-art machinery is based on the latest innovations in gravure cylinder copper plating. In addition, the machinery has many economical aspects, such as:
- Defined layer purity and surface quality result in low diamond wear, thereby keeping production costs low
- Efficient current transfer results in consistent layer thickness
- Low energy consumption cut production costs
ANODE SHAPE
-
-Concentric anode shape
-
-Precise electrolyte flow
ANODE ADJUSTMENT
-
-Concentric automatic anode adjustment
-
-Optimized current flow towards cylinder
ANODE BASKETS
-
-Titanium anode baskets
-
-Symmetrical overflow of electrolyte
-
-360° electrolyteoverfolw return
ECOCLAMP
-
-Lightweight cylinder holder
-
-Internal drive wheel and current transfer are bulidt into the machine
-
-Simple design with easy fit
GALVACONTROL
-
-PLC electronics with interface to remote control
-
-Fully automatic process or manual operation
-
-Adjustable production parameters
ADAPTER
-
-Weight saving construction
-
-Modular design
Plating time:
Current density:
Immersion:
Electrolyte temperature:
Copper hardness
Plating thickness tolerance:
Electrolyte filtration rate:
100 µm layer in 30 - 32 minutes
30 A/dm²
50 % of cylinder surface
30-34 °C ± 1,5 °C
HV 0,1 180-220 ±2,5 HV (with additive)
for 100 µm layer ± 3%
approx. 15 times per hour
