ECOTRANS

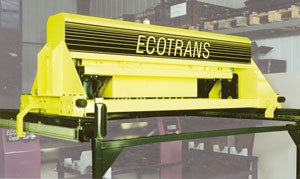

FULLY AUTOMATIC CRANE SYSTEM FOR PRODUCTION FOR ROTOGRAVURE CYLINDERS
AUTOMATIC CYLINDER TRANSPORT
-
-Laser measurement system for automatic identification of cylinder sizes
-
-Minimal operator interventions
-
-Cylinder handling during automatic process
-
-Integrated steel rail to ECOPLATER and ECOPOLISHER
AUTOMATIC PRODUCTION OF ROTOGRAVURE CYLINDERS

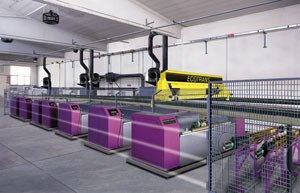

ECOTRANS can run with only 2.2 meters of headroom. The steel rails are mounted onto the machines structure. The modular design allows the system to be extended easily and at low cost. The crane system is designed to be efficient and simple.
-
-Independent of building structure
-
-Compact design, low overall height
-
-Efficient cylinder handling between machines
-
-User friendly controls
-
-Computer interface to cylinder storage systems
INCREMENTAL MEASURING SYSTEM
-
-Precise position with optic-electronics
-
-Secure positioning even after power failure
INPUT STATION
-
-Touch screen display and control
-
-Programmable process sequence
DISPLAY VISIBILITY
-
-User friendly menu driven screens
-
-Visible work cycles displayed
LOADING CLAMP
-
-Self-locking mechanical design for safe transport
-
-Surveillance by electromagnets and limit switches
DATA TRANSMISSION
-
-Maintenance-free infrared data transmission
-
-No trailing cables
POWER TRANSFER
-
-Enclosed power rails with carbon contacts
-
-No trailing cables
Application:
Horizontal speed:
Vertical speed:
Data transmission:
Power transfer:
Electronic control:
Rotogravure cylinders for packaging printing
40 m / min
10 m / min
by infrared data transmitter / receiver
with carbon brush onto copper rails, no trailing cables
PLC control with interface
